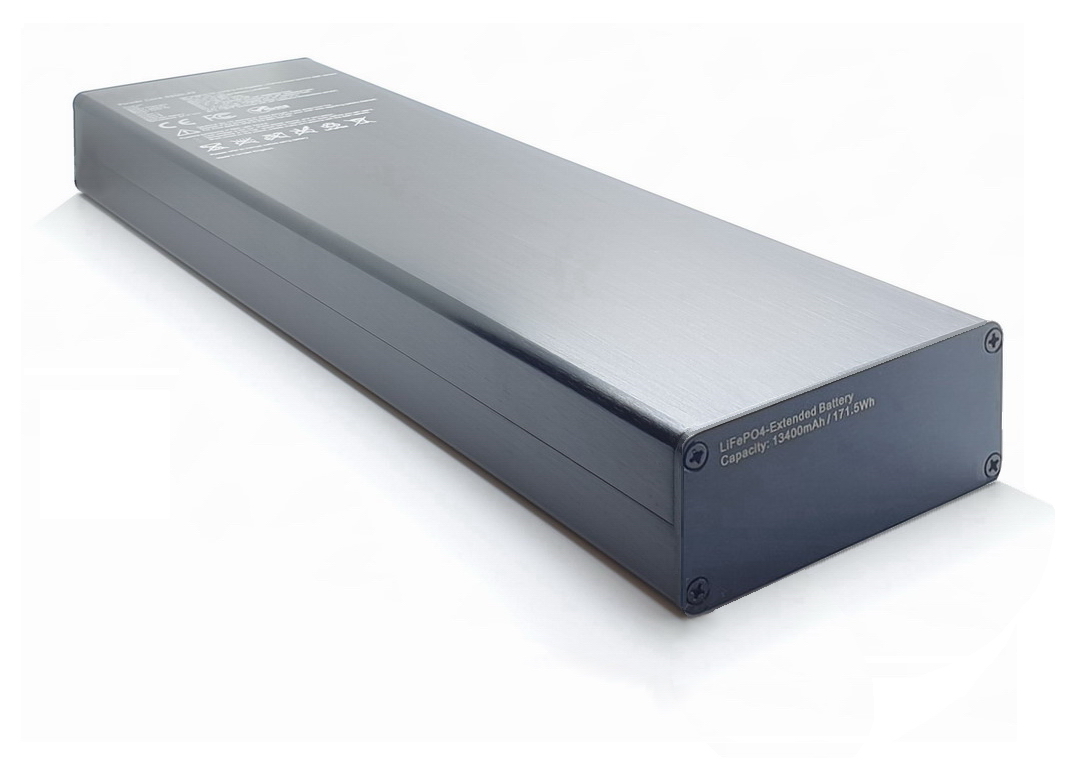

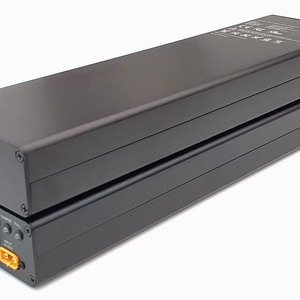

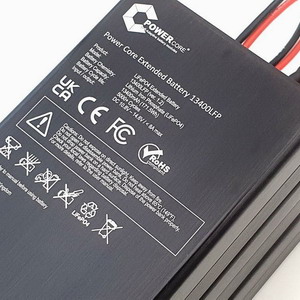

Power Core 13400LFP Extended
(High Capacity Extended battery pack)
|
| Price:
|
£179
£149 (Inc. VAT) Black Friday price!
Limited-time offer valid until the end of the month.
|
| Manufacturer:
|
Power Core Systems Ltd.
|
Model:
|
Power Core 13400LFP Extended
|
Availability:
|
In Stock (GERMANY)
|
Delivery:
|
|
Warranty:
|
2 years warranty
|
|
|
Power Core 13400LFP Extended
(Extended battery pack)
Add an extra 200% capacity to your current battery, and get extra camera recording time!
The Power Core 13400LFP Extended Battery Pack is meant to work as an extension to the 6200LFP Battery Pack. This will not work as a standalone product.

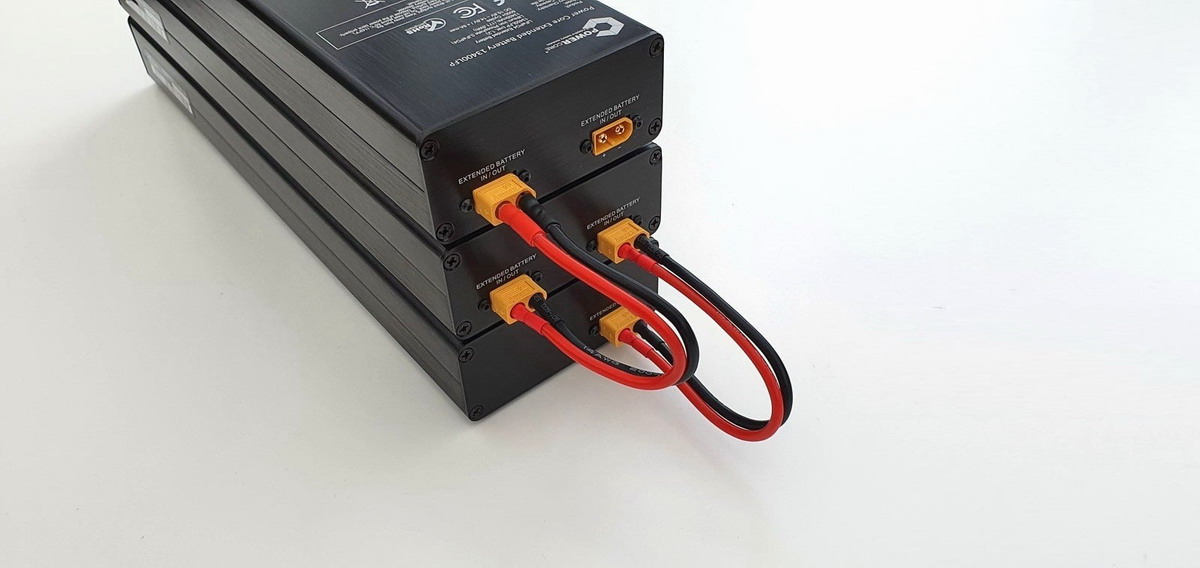

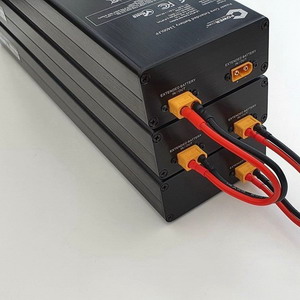

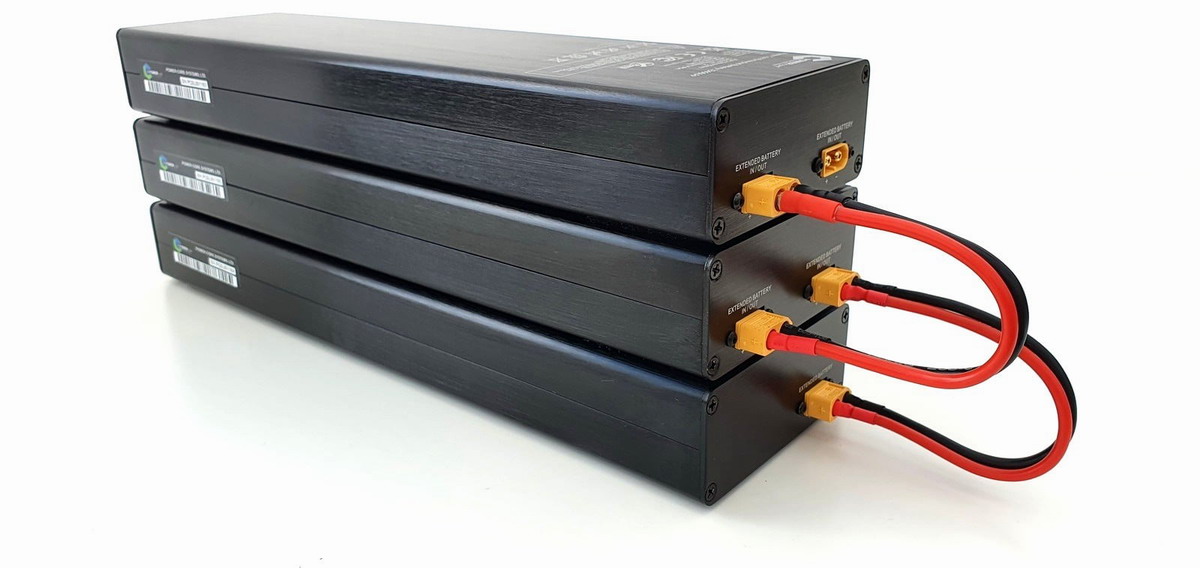

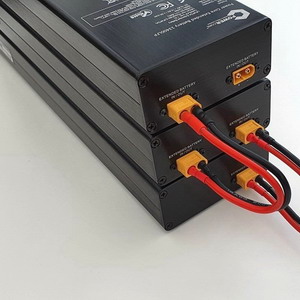

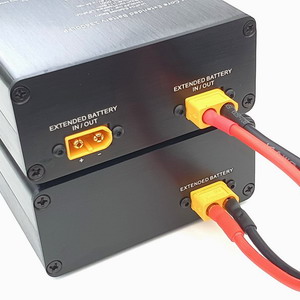

You can connect multiple batteries together via the dedicated extended connection port on the back of the devices. A single Extended battery pack has 2 connection ports which allow connecting another extended battery pack to a current extended back. Once when batteries are connected system is ready to go.
The whole system is fully controlled by the main battery unit (6200LFP) which charges and discharged extended battery packs together
simply by sharing power between devices.
Simple installation is a key here, no need to rewire the system - simply connect both batteries by a dedicated cable on the back of the devices.
The world's biggest Extended LiFePO4 battery pack on the market
Huge Capacity, Real LiFePO4 Cells, Easy installation.

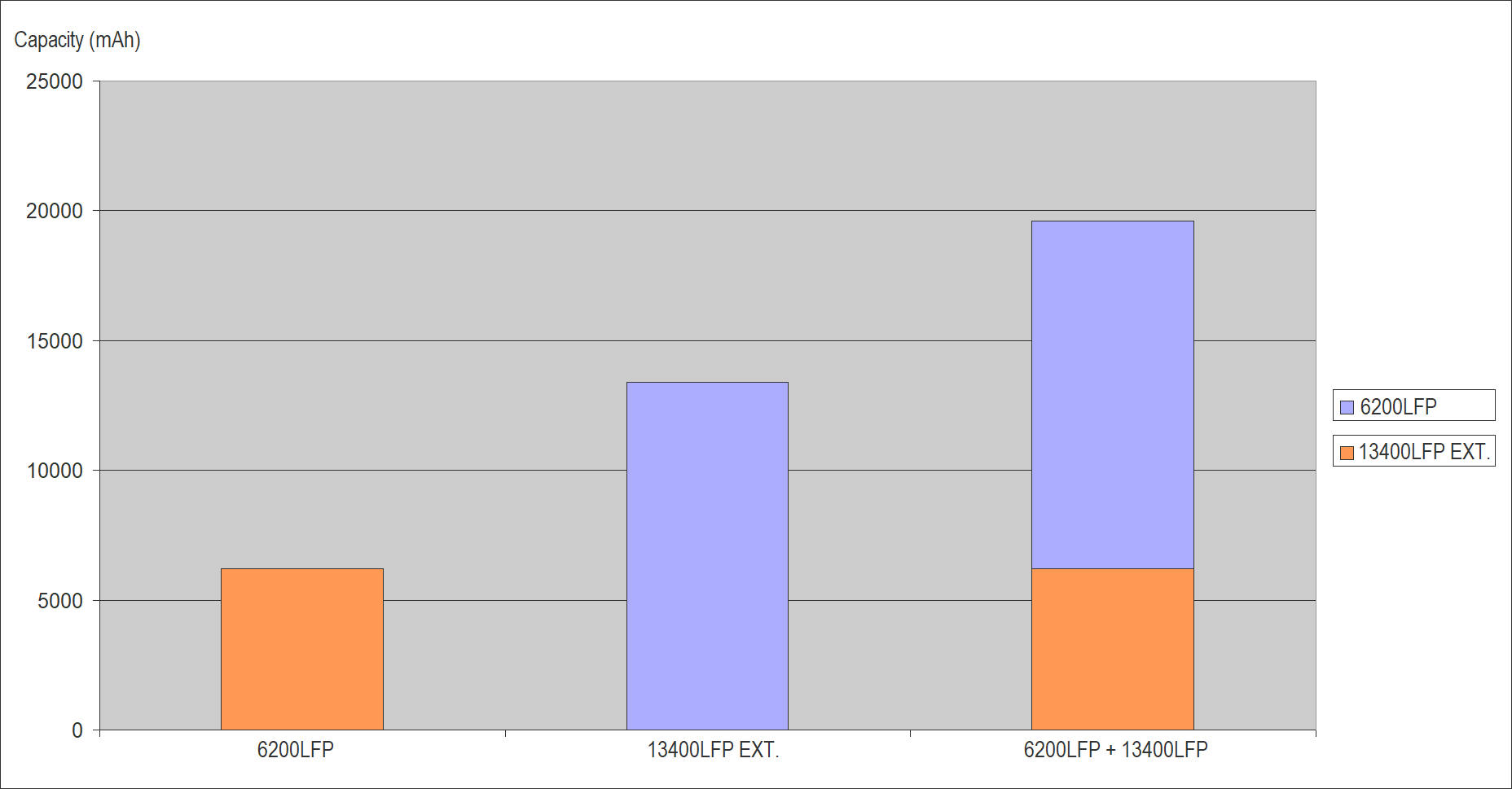

A single extension has a 2-times bigger capacity than your current battery pack means 6200mAh + 13400mAh = 19600mAh
A single 6200LFP battery keeps your 2CH dashcam for ~24hours:
With the single extended pack, you will get 3 days (3x 24h).
with two extensions you will get 5 days.
And all that without any worries for the next 10 years thanks to the LiFePO4 battery cells.
|
Product Features
|
|
|
Huge Capacity
A single extended battery pack has a 200% bigger capacity than the main battery unit. This means 3x more recording times by your camera!
|
Revolutionary LiFePO4 Technology
Thermal and chemical stability improve the safety of LiFePO4 technology, no fire no explosion, Low toxicity, Well-defined performance, Long-term stability, without accelerating the deterioration of the battery.
|
Cooler Battery
Our compact and thin power bank features advanced technology that not only charges the power bank 5x faster but will keep it from overheating.
|
Protect your car battery
No more problems with a car battery discharge during parking mode, ultra-efficient and safe way to keep your dashcam on and in recording mode while the car is parked without affecting the car main battery itself.
|
Cooler Battery
Our compact and thin power bank features advanced technology that not only charges the power bank 5x faster but will keep it from overheating.
|
5,000+ Life Cycles
Enhance your battery's lifespan with our LiFePO4 battery. Unlike the industry standard of having a 300 life cycle, which loses capacity over 1 year, you can count on Real LiFePO4 power bank to be in peak condition for years to come.
|
|
|
|
Simple installation - Double Capacity

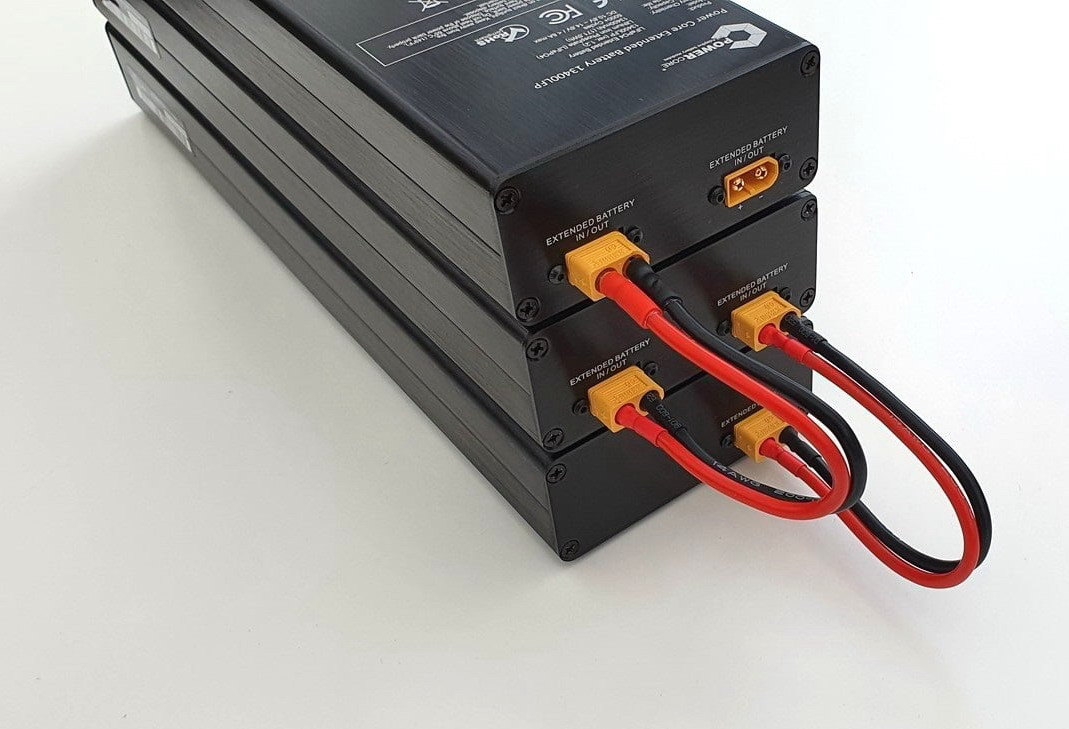

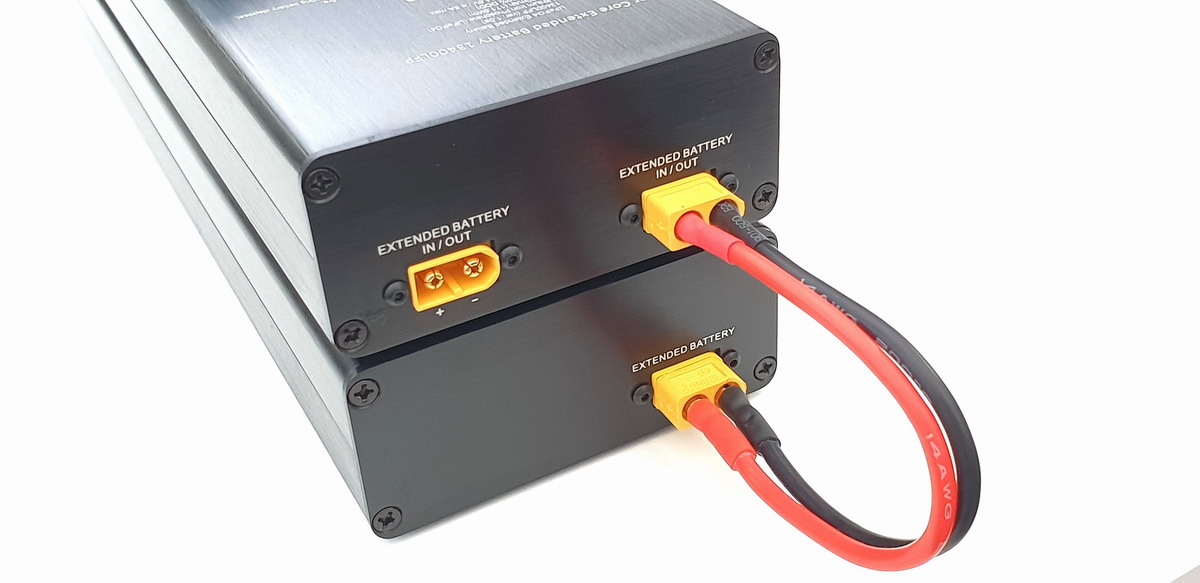

Simply attach the extended battery pack to the main battery unit by a dedicated cable on the back of the devices
A single extended battery pack has a 2 times bigger capacity compared to the main battery unit
The main battery unit fully controls the extended pack and shares the capacity with each device
The easiest way to extend system capacity by extra 200%

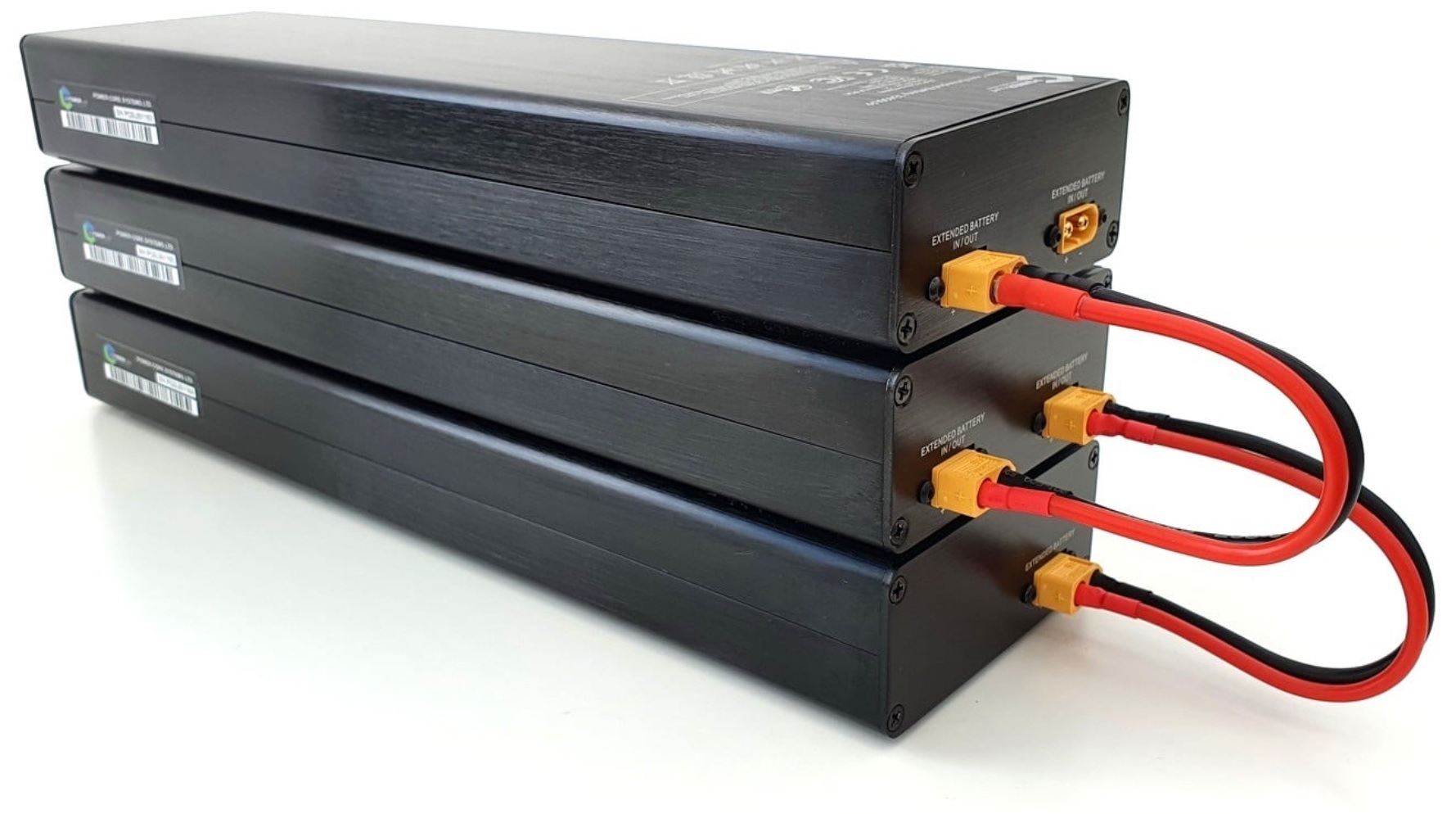

You can connect as many extensions as you need together.
|
|
|
|
|
Power Bank Comparison Table
|
|
|
|
|
 |
|
|  |
|
|
| |
Recording Time
(No Extension attached) |
Power |
|
Recording Time
(with a single Extension Pack Attached) |
|
Recording Time
(With a two Extensions Pack Attached) |
| Dash Camera Model |
Hours |
(=Days)
[Hours/24h] |
Current
(mA) |
|
Hours |
(=Days)
[Hours/24h] |
|
Hours |
(=Days)
[Hours/24h] |
| Blackvue DR900X-2CH 4K |
15.0 |
0.62 |
412 |
|
45 |
1.85 |
|
75 |
3.12 |
| Blackvue DR750S-2CH |
22.8 |
0.95 |
271 |
|
68.4 |
2.85 |
|
114 |
4.75 |
| Thinkware U1000 2CH 4K |
28.18 |
1.17 |
220 |
|
84.54 |
3.52 |
|
140.9 |
5.87 |
| Viofo A139 (3CH) |
9.9 |
0.41 |
625 |
|
29.7 |
1.23 |
|
49.5 |
2.06 |
| Viofo A129 PRO 4K (1CH) |
36.4 |
1.51 |
170 |
|
109.2 |
4.55 |
|
182 |
7.58 |
| Viofo A119 V3 |
41.3 |
1.72 |
150 |
|
123.9 |
5.1 |
|
206.5 |
8.6 |
| Vantrue N4 3CH |
18.6 |
0.7 |
333 |
|
55.8 |
2.32 |
|
93 |
3.8 |
|
|
Charging Speed
(From 0% to 100% speed) |
|
Charging Speed
(From 0% to 100% speed) |
|
Charging Speed
(From 0% to 100% speed) |
|
Hours |
Minutes |
Mode |
|
Hours |
Minutes |
|
Hours |
Minutes |
| Power Core 6200LFP |
1.20 |
80 |
Cigar |
|
4 |
240 |
|
7.40 |
400 |
| Power Core 6200LFP-HW |
1 |
60 |
Hardwire |
|
3 |
180 |
|
6 |
360 |
| Power Core 6200LFP-PLUS |
1.20 |
80 |
Cigar |
|
4 |
240 |
|
7.40 |
400 |
| Power Core 6200LFP-PLUS |
0.50 |
50 |
Hardwire |
|
2.30 |
150 |
|
4.10 |
250 |
|
|

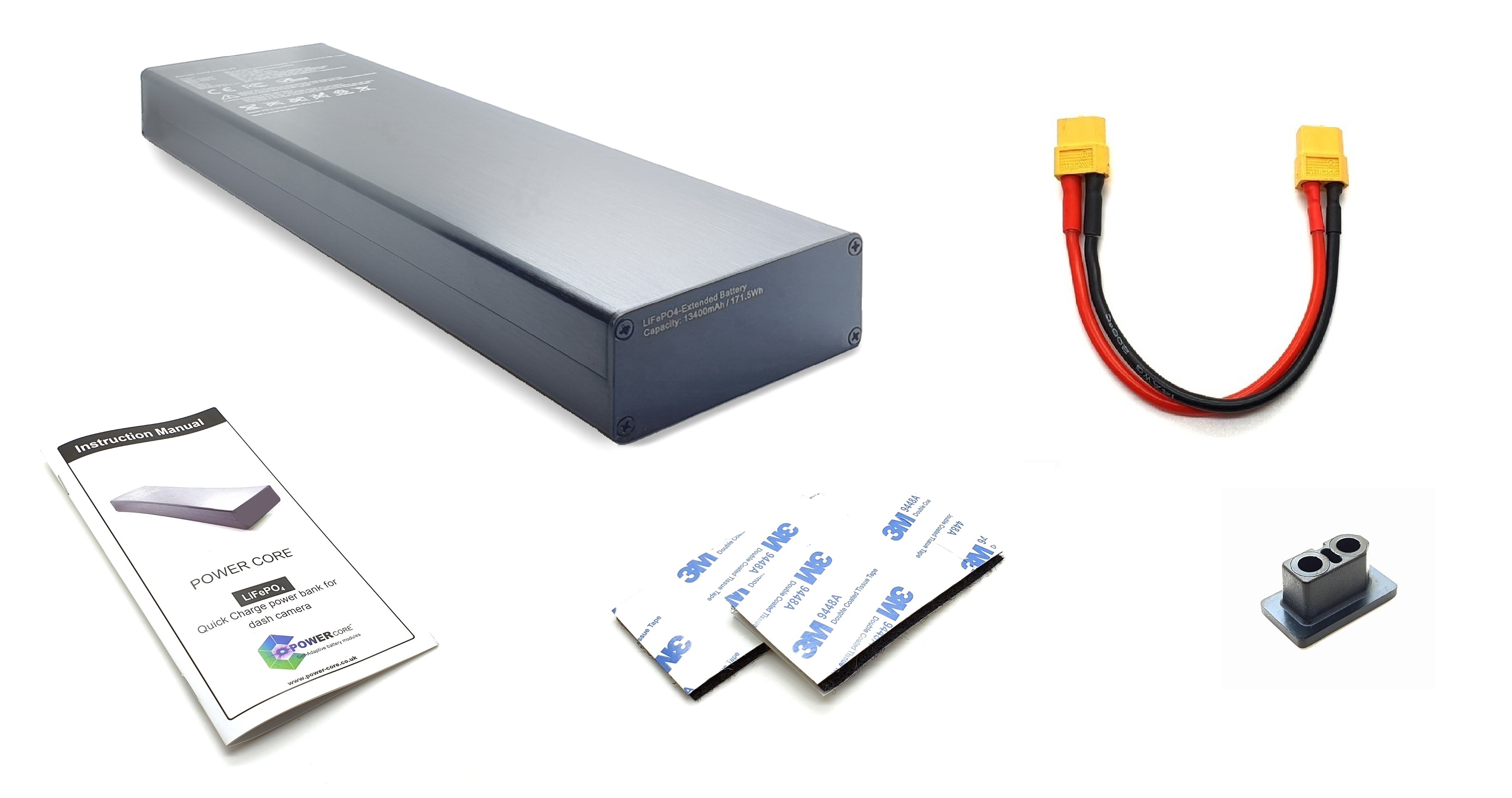

Box Contents:
|
|
- Power-Core 13400LFP Extended Pack
- XT60 Connection wire
- XT60 Cover plug
- 2x High Bond 3M Adhesive Tape
- Instruction Manual (EN) + 2Years Warranty
|
Product Specification
|
|
|
|
| Model | 13400LFP Extended |
| Color | Black (brushed aluminium texture) |
| Housing Material | Full Aluminium body with laser marking engraving |
| Size | 322 (L) x 89 (W) x 38 mm (H) |
| Weight | 1405grams |
| Battery Cell Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Internal Cell Combination | 2 x 4S (8 cells in total) |
| Internal Cell Equalizer | Yes, full High and LOW Active Balance mode |
| Internal Cell Type | Cylindrical with Safety Preasure Valve 2.5mpa |
| Input/Output | DC 9 - 14.8V (8A max) CC, CV Mode only |
| Output | Output1: DC 5V @ 3A
Output2: DC 11V-14.6V @ 3A
Output3: DC 12V ACC @ 2A |
| Cycle Life | 5000+ Cycles (80% DOD) |
| Standby mode | Yes, ultra low power saver mode (<1mA)
with total power off feature (0mA) |
| Connection type | XT60 Terminal - Works with the main battery unit only |
| Charging temperature | 0°C - 60°C |
| Discharging temperature | -30°C - 70°C |
| Low-Temp Protection | Controlled by the main batetry unit |
| Hi-Temp Protection | Controlled by the main batetry unit |
| Capacity | 12.8V - 13400mAh / 171.5Wh |
| External Expansion port | Yes, 14.6V LiFePO4 Another Extended battery pack only |
| Protection type |
Short-Circuit Protection: Yes
Reverse polarity protection: Yes
Over Discharge protection: Yes, 2.65V/Cell (~10.6V)
Extended Battery Pack Over Current protection: 5A+
Interference free design
|
| Country of origin | Made in Germany |

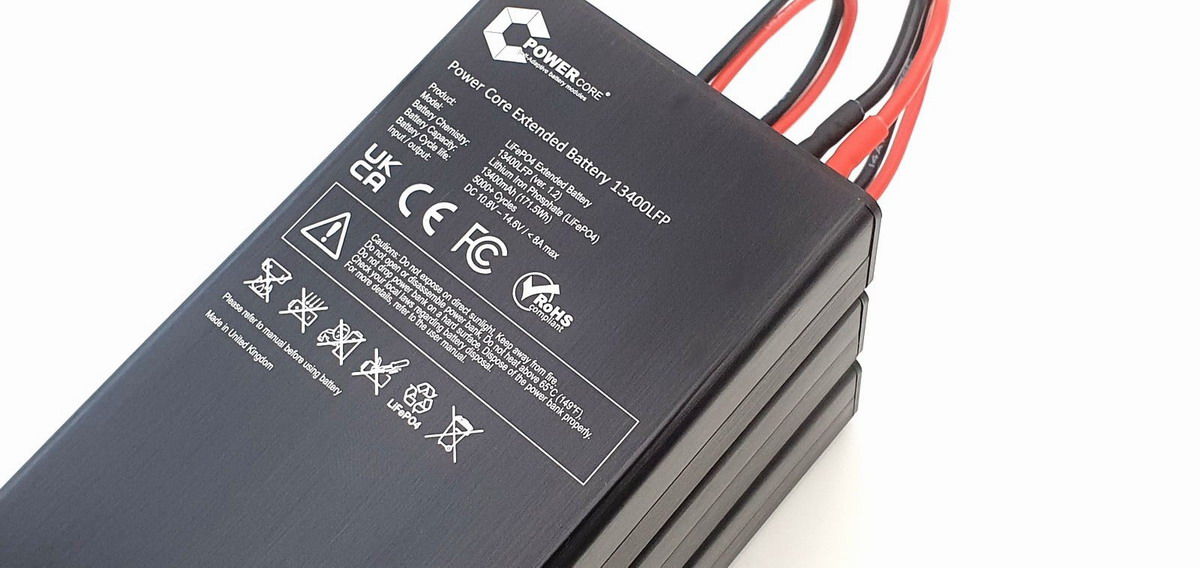

| Certification | EN 62133-2, UN38.3, UN3481, FCC, CE, UK-CA, MSDS, ROHS. |
| Warranty Period | 2years |
|
|
|
|
| |
| |
|
