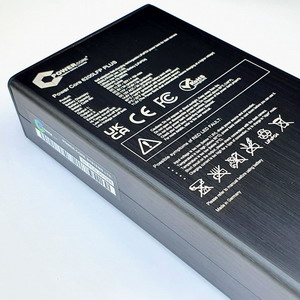

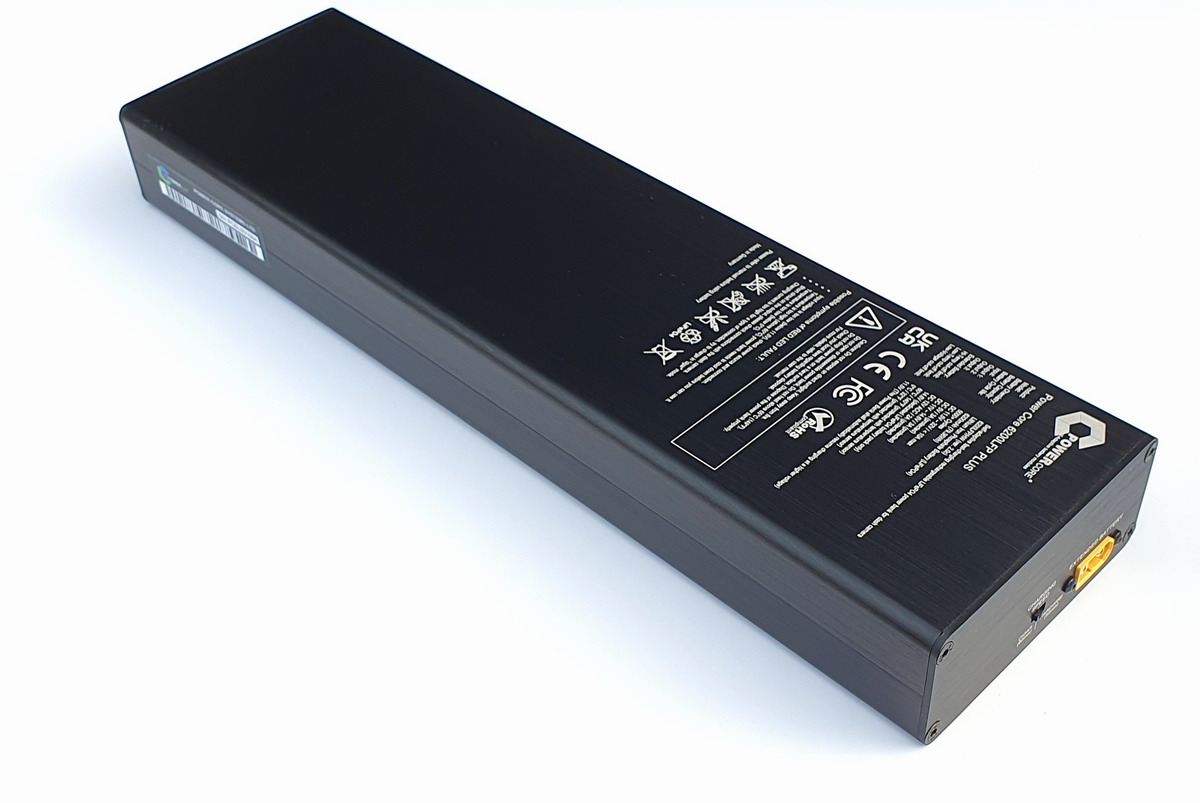

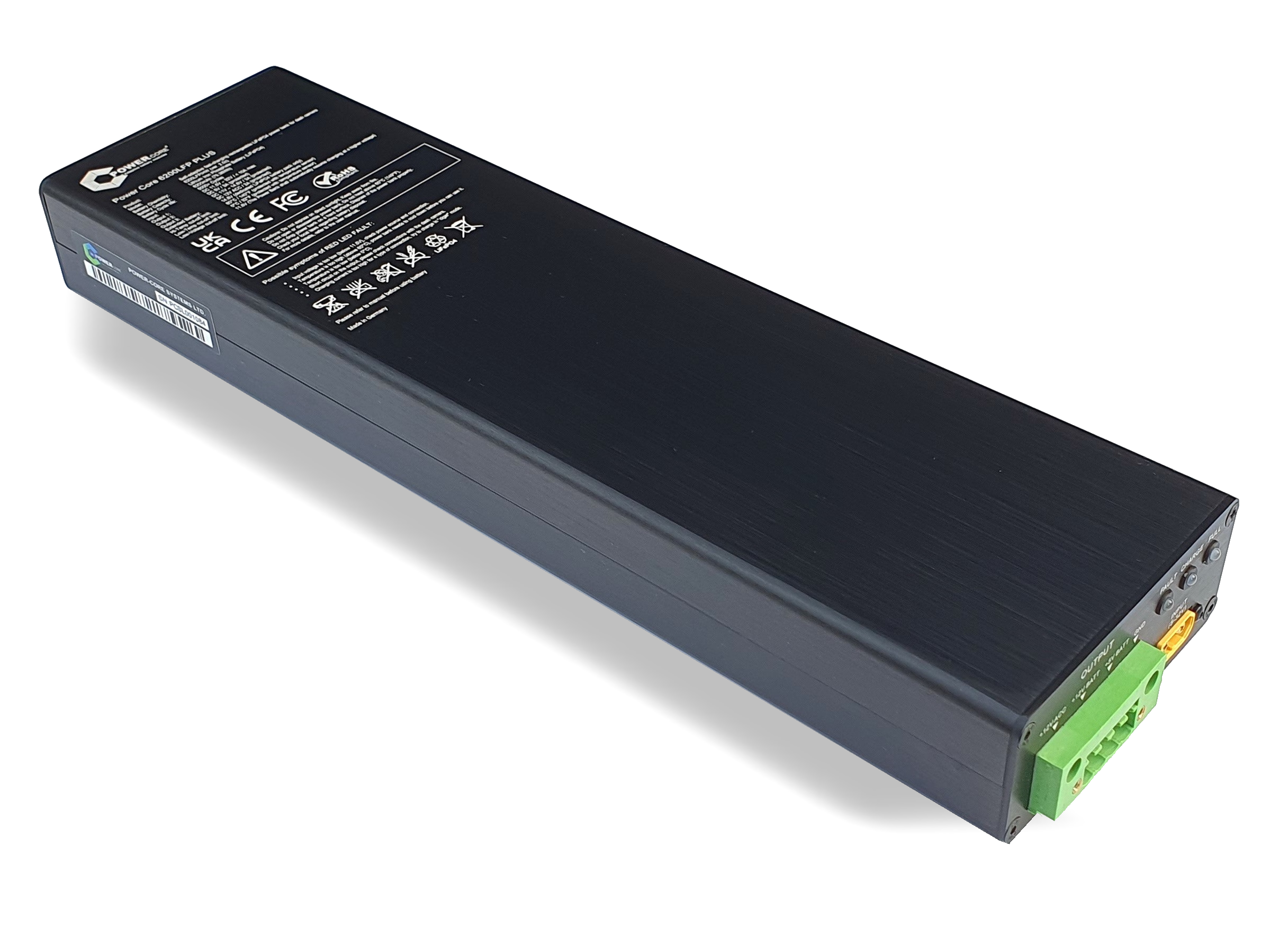

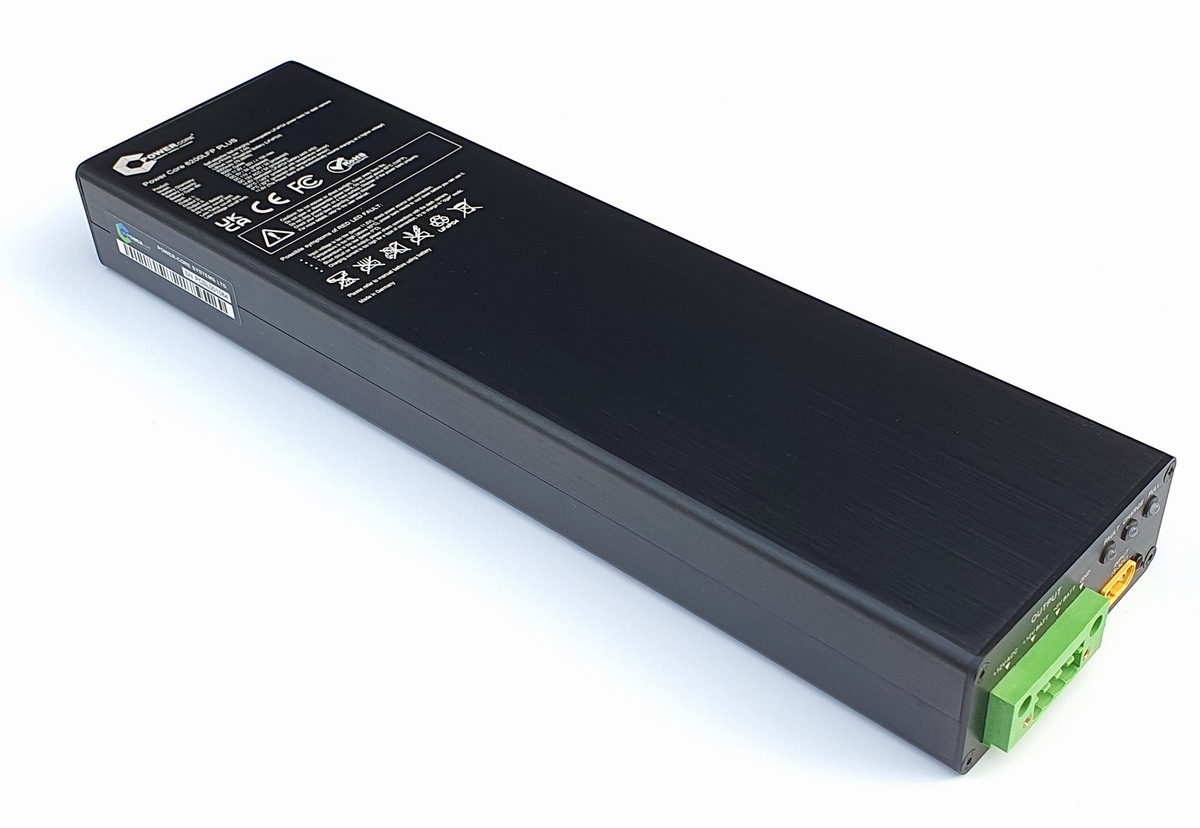

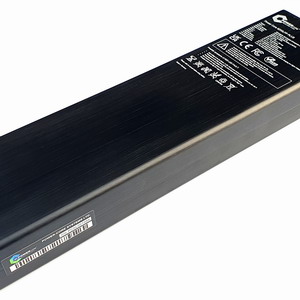

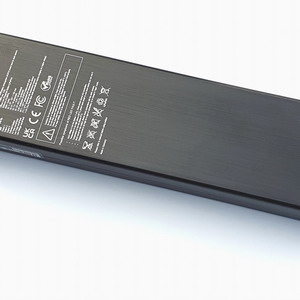

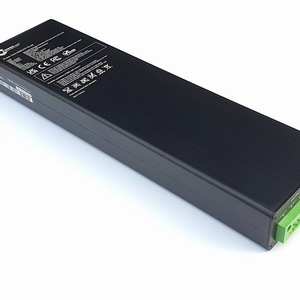

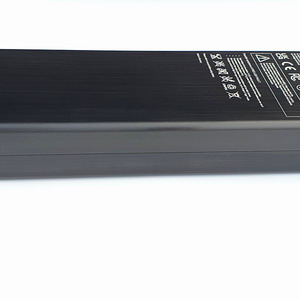

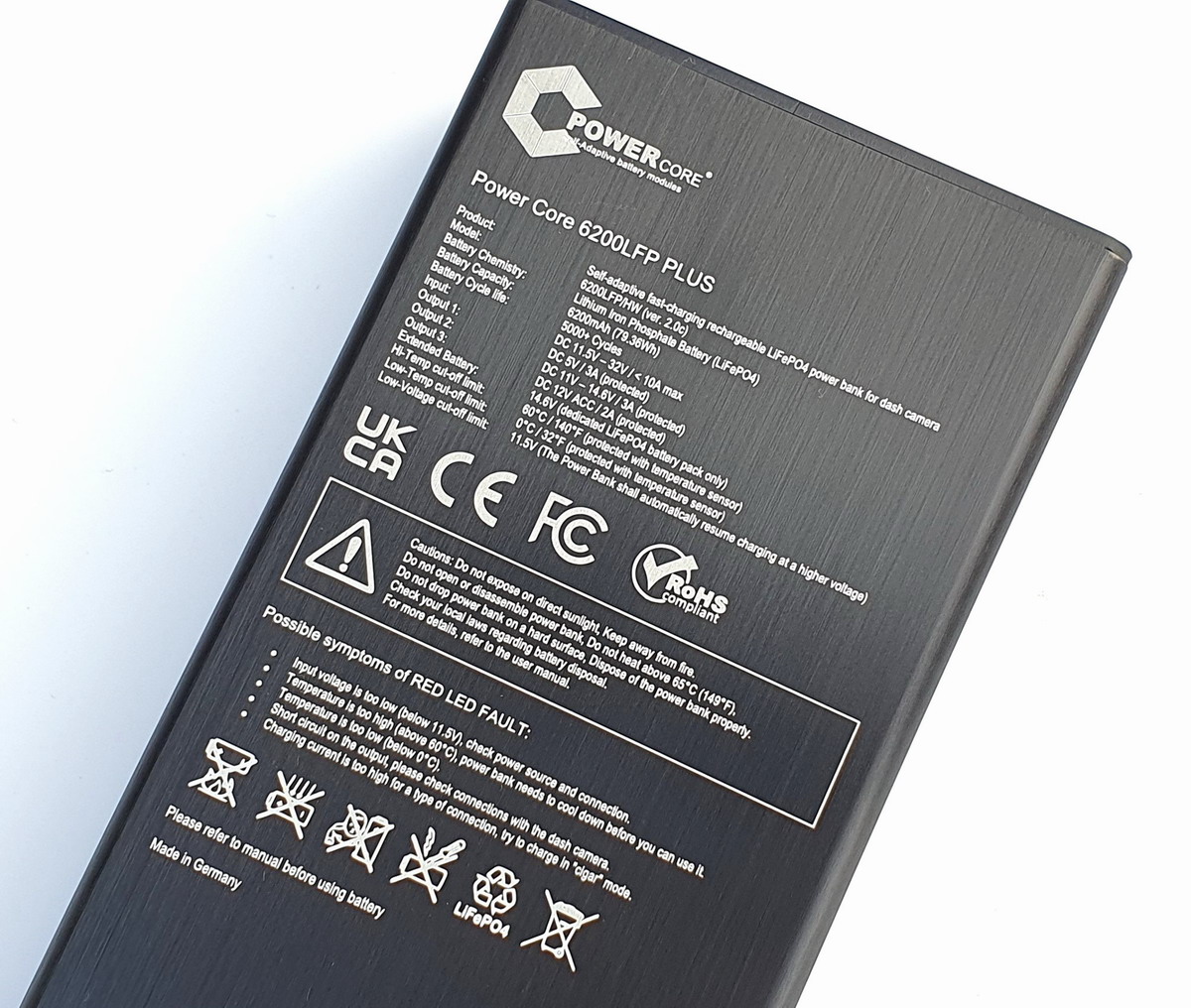

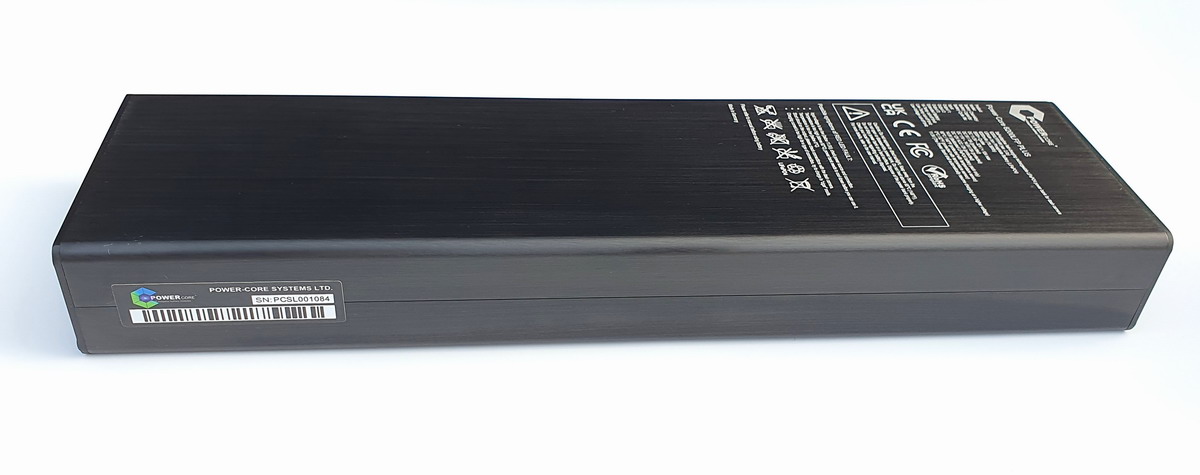

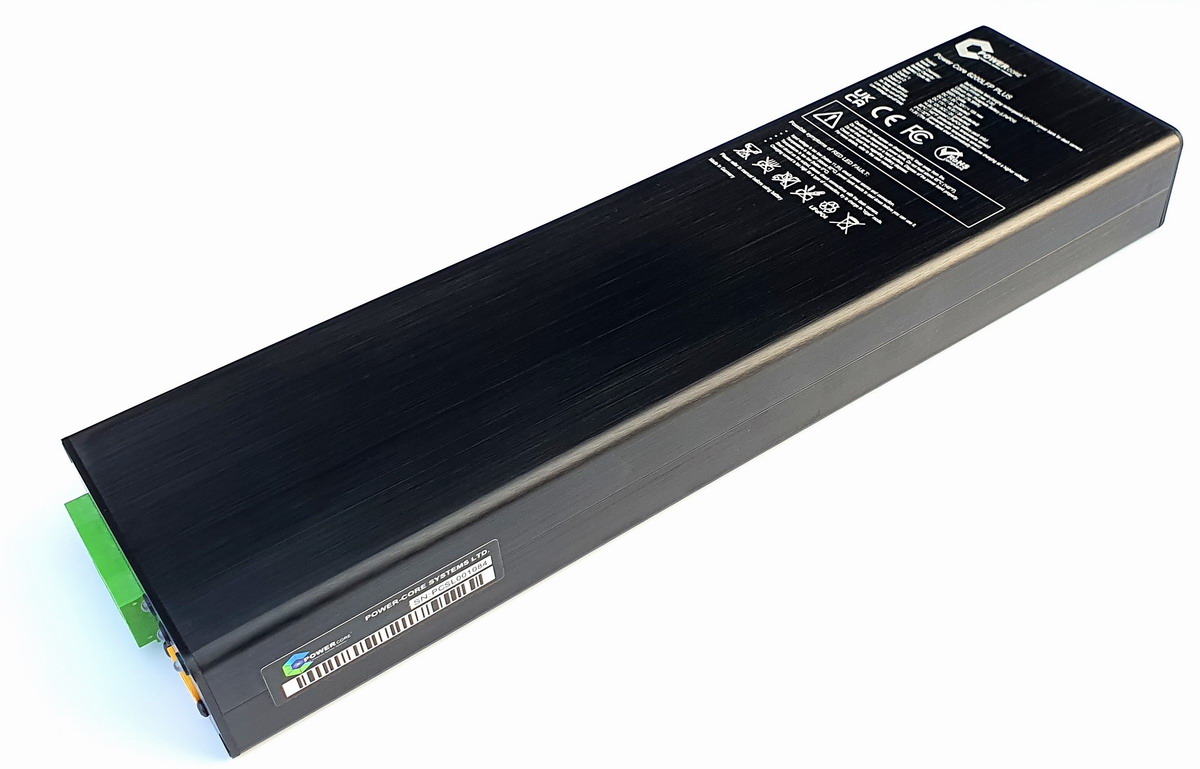

Power Core 6200LFP PLUS
(LiFePO4 Power Bank for Dashcam)
|
| Price:
|
£219 (Inc. VAT)
|
| Manufacturer:
|
Power Core Systems Ltd.
|
Model:
|
Power Core 6200LFP PLUS (upgraded HW version)
|
Availability:
|
In Stock (GERMANY)
|
Delivery:
|
|
Warranty:
|
2 years warranty
|
|
|
Power Core 6200LFP-PLUS
(DASH CAM POWER BANK)
Smart LiFePO4 power bank designed and for dash cameras. No more problems with a car battery discharge during parking mode, ultra-efficient and safe way to keep your dashcam on and in recording mode while the car is parked without affecting the car battery itself. The system works independently, and fully adaptive conditions and power to recharge itself as fast as possible without any risk of degraded power bank cells itself, thanks to the latest LiFePO4 technology and ultra-efficient charging conversion chip made by USA Linear - LTC. Power Bank is self fully self-adaptive and maintenance-free, simply connect your dash camera with the power bank and that's it. Power Bank will provide continuous and uninterrupted power to your dash camera. The device will start to recharge itself once when the car engine is engaged in an ultrafast mode without interrupting output power to your dash camera. Simply 50minutes of charging time/driving time is just enough to charge the power bank to 100% and to keep your single-channel dash camera up to 50hours in parking mode when the car engine is off. Even random recharges like 15mnutes are enough to keep your single-channel dash camera for 10hours (dual 6hours). Random short-recharges will not affect power bank lifespan, thanks to the Internal protection recharging chip and battery technology. Ultra-long lifespan and super safe LiFePO4 battery cells guarantee more than 10years of everyday use, less than 20% capacity losses after 5000recharging cycles (13years). Read more details about product specifications and features below.
The system works by charging a high-quality LiFePO4 battery when your car is running.
When your car is turned off, the charged battery is then used to provide continuous 12V power to your dash camera without the need to drain any power from your car's battery.
This process is very effective in minimizing the risk of battery discharge, low voltage warnings, and flat batteries.
|
|
|
|
Product Features
|
|
|
Charge 5x Faster
Go from 0 to 100% in 50 minutes! Our LiFePO4 battery enables you to fully charge your power bank in as quickly as 50 minutes.
|
Revolutionary LiFePO4 Technology
Thermal and chemical stability improve the safety of LiFePO4 technology, no fire no explosion, Low toxicity, Well-defined performance, Long-term stability, without accelerating the deterioration of the battery.
|
Pass-Through Charging
With pass-through charging ability, you can simultaneously charge your power bank with full speed as well as your device.
|
Ultra-Safe Circuit-Board
Thanks to years of PCB chipset research, our cutting-edge technology allows us to protect your devices and LiFePO4 Cells from surges with numerous safety features unique to LiFePO4 products.
|
Cooler Battery
Our compact and thin power bank features advanced technology that not only charges the power bank 5x faster but will keep it from overheating.
|
5,000+ Life Cycles
Enhance your battery's lifespan with our LiFePO4 battery. Unlike the industry standard of having a 300 life cycle, which loses capacity over 1 year, you can count on Real LiFePO4 power bank to be in peak condition for years to come.
|
Extendable capacity
Simply attach a dedicated extended battery pack and extend the capacity of the battery pack as much as you want it, you can connect multiple batteries together.
Huge extended battery pack capacities available.
|
Support Parking Mode
Our Power Bank Fully support dashcam parking modes, allows your dash camera to save memory space and save even more energy while the car is parked.
|
Protect your car battery
No more problems with a car battery discharge during parking mode, ultra-efficient and safe way to keep your dashcam on and in recording mode while the car is parked without affecting the car main battery itself.
|
|
|
|
Simple installation
Connect any dash camera simply by pushing a button, no tools or soldering skills required
Built-in ultra-efficient 12V and 5V Output power for dedicated dash cams or WiFi routers.
|
|
|
|
|
Power Bank Comparison Table
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Core 6200LFP
|
Power Core 6200LFP-PLUS
|
Cellink NEO6
|
Blackvue B-124
|
Blackvue B-112
|
Thinkware iVolt Mini
|
Iroad Power Pack
|
Anker PowerCore 26800+
|
Dimension:
(mm)
|
322 x 89 x 38
|
322 x 89 x 38
|
157 x 171 x 40
|
157 x 171 x 40
|
128 x 102 x 50
|
166 x 131 x 37
|
148 x 160 x 42
|
180 x 82 x 22
|
Weight:
(Kg)
|
1.4
|
1.3
|
1.4
|
1.4
|
0.55
|
0.9
|
1.5
|
0.5
|
Battery Type:
(Technology)
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
LiFePO4
|
Li-Ion
|
| Battery Cycle Life:
|
5000+ 80% DOD
|
5000+ 80% DOD
|
3000+ 80% DOD
|
3000+ 80% DOD
|
3000+ 80% DOD
|
3000+ 80% DOD
|
5000+ 80% DOD
|
≥300 75% DOD
|
Capacity:
(12V)
|
6200 mAh
|
6200 mAh
|
6000 mAh
|
6000 mAh
|
3000 mAh
|
4500 mAh
|
6800 mAh
|
26800 mAh @ 3.7V
|
Charging time:
(from 0% to 100% when Hardwired)
|
60 min
|
50 min
|
45 min
|
45 min
|
60 min
|
60 min
|
50 min
|
210 min
|
Dashcam running time:
(1CH / 128mA)
|
48Hours
|
48Hours
|
46Hours
|
46Hours
|
23Hours
|
35Hours
|
53Hours
|
52Hours
|
Dashcam running time:
(2CH / 245mA)
|
25Hours
|
25Hours
|
24Hours
|
24Hours
|
12Hours
|
18Hours
|
27Hours
|
30Hours
|
Parking Mode Support:
(ACC)
|
✓
|
✓
|
✓
|
✓
|
⤫
|
✓
|
✓
|
⤫
|
| Hi-Temp Protection:
|
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
| Low-Temp Protection:
|
✓
|
✓
|
⤫
|
✓
|
⤫
|
⤫
|
⤫
|
⤫
|
Short Circuit Protection:
(output)
|
✓
(2.7A)
|
✓
(2.7A)
|
✓
(2.7A)
|
✓
(2.7A)
|
✓
(2A)
|
✓
(2.7A)
|
✓
(2A)
|
✓
(2.1A)
|
| Expandable Capacity:
|
✓
|
✓
|
✓
|
✓
|
⤫
|
⤫
|
⤫
|
⤫
|
Extended Battery Capacity:
(12V)
|
13400 mAh
|
13400 mAh
|
6600 mAh
|
6600 mAh
|
⤫
|
⤫
|
⤫
|
⤫
|
| Bluetooth:
|
⤫
|
⤫
|
✓
|
✓
|
⤫
|
⤫
|
✓
|
⤫
|
| 12V Output:
|
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
✓
|
⤫
|
| 5V Output:
|
✓
|
✓
|
⤫
|
✓
|
✓
|
⤫
|
⤫
|
✓
|
| Made In:
|
United Kingdom
|
United Kingdom
|
South Korea
|
South Korea
|
South Korea
|
South Korea
|
South Korea
|
China
|
| Warranty Period:
|
2Years
|
2Years
|
1Year
|
1Year
|
1Year
|
1Year
|
1Year
|
1Year
|
Price:
(RRP)
|
£199
|
£219
|
£269
|
£289
|
£169
|
£179
|
£289
|
£109
|
Exptended Batt price:
(RRP)
|
£179
|
£179
|
£269
|
£289
|
⤫
|
⤫
|
⤫
|
⤫
|
|
|
Real Dashcam running times comparison table
|
|
|
|
|
 | Real Dash Camera Recording Time
(discharging power bank) | |
|
|
|
| |
Recording Time
(On Power Bank Only) |
Power |
Parking Mode |
Features |
|
| Model |
Hours |
(=Days)
[Hours/24h] |
Current
(mA) |
Low
Bit |
Motion
Detect. |
Time
Lapse 1fps |
Pre-Rec
(Buffered) |
RADAR
(Microwave) |
LCD |
GPS |
Wi-Fi
(Or Cloud) |
60FPS or HDR |
User Name |
| Blackvue DR900X-2CH 4K |
15.0 |
0.62 |
412 |
- |
 |
- |
|
- |
- |
ON |
ON |
OFF |
int. |
| Blackvue DR900S-2CH 4K |
16.1 |
0.67 |
385 |
- |
|
- |
|
- |
- |
ON |
ON |
OFF |
int. |
| Blackvue DR900S-1CH 4K |
20 |
0.83 |
310 |
- |
|
- |
|
- |
- |
ON |
ON |
OFF |
int. |
| Blackvue DR750S-2CH |
22.8 |
0.95 |
271 |
- |
|
- |
|
- |
- |
ON |
ON |
- |
int. |
| Blackvue DR750S-1CH |
32.9 |
1.37 |
188 |
- |
|
- |
|
- |
- |
ON |
ON |
- |
int. |
| Thinkware U1000 2CH 4K |
28.18 |
1.17 |
220 |
|
|
- |
|
- |
- |
ON |
ON |
- |
int. |
| Thinkware U1000 2CH 4K |
30.6 |
1.27 |
202 |
- |
- |
|
- |
- |
- |
ON |
ON |
- |
int. |
| Thinkware U1000 2CH 4K |
187.8 |
7.82 |
33 |
- |
- |
- |
- |
|
- |
ON |
ON |
- |
int. |
| Thinkware U1000 1CH 4K |
51.6 |
2.1 |
120 |
|
|
- |
|
- |
- |
ON |
ON |
- |
int. |
| Thinkware U1000 1CH 4K |
54.3 |
2.26 |
114 |
- |
- |
|
- |
- |
- |
ON |
ON |
- |
int. |
| Thinkware U1000 1CH 4K |
193.7 |
8.7 |
32 |
- |
- |
- |
- |
|
- |
ON |
ON |
- |
int. |
| Thinkware Q800PRO 2CH |
35.4 |
1.47 |
175 |
|
|
- |
|
- |
- |
ON |
OFF |
- |
int. |
| Thinkware Q800PRO 1CH |
47.6 |
1.98 |
130 |
|
|
- |
|
- |
- |
ON |
OFF |
- |
int. |
| Thinkware F770 2CH |
25.8 |
1.07 |
240 |
|
|
- |
|
- |
- |
ON |
OFF |
- |
int. |
| Thinkware F750 2CH |
25.8 |
1.07 |
240 |
|
|
- |
|
- |
- |
ON |
OFF |
- |
int. |
| Viofo A129 PRO 4K (1CH) |
36.4 |
1.51 |
170 |
|
- |
- |
- |
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A129 PRO 4K (2CH) |
22.6 |
0.94 |
274 |
|
- |
- |
- |
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A129 PRO 4K (2CH) |
27.3 |
1.13 |
227 |
- |
- |
|
- |
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A129 PRO 4K (2CH) |
29.38 |
1.22 |
211 |
- |
- |
|
- |
- |
OFF |
OFF |
OFF |
- |
int. |
| Viofo A129 PRO 4K (2CH) |
20 |
0.85 |
301 |
- |
- |
- |
|
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A129 DUO (2CH) |
27.5 |
1.14 |
225 |
|
- |
- |
- |
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A129 DUO (2CH) |
33.15 |
1.38 |
187 |
- |
- |
|
- |
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A129 DUO (2CH) |
25.3 |
1.05 |
245 |
|
- |
- |
- |
- |
ON |
ON |
OFF |
- |
int. |
| Viofo A129 DUO (2CH) |
23.84 |
0.99 |
260 |
|
- |
- |
- |
- |
ON |
ON |
OFF |
- |
int. |
| Viofo A129 (1CH) |
48.4 |
2.0 |
128 |
|
- |
- |
- |
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A129 (1CH) |
55.85 |
2.32 |
111 |
- |
- |
|
- |
- |
OFF |
ON |
OFF |
- |
int. |
| Viofo A119 V3 |
50 |
2.08 |
124 |
|
- |
- |
- |
- |
OFF |
OFF |
OFF |
OFF |
int. |
| Viofo A119 V3 |
43.3 |
1.80 |
143 |
|
- |
- |
- |
- |
OFF |
OFF |
OFF |
HDR |
int. |
| Viofo A119 V3 |
41.3 |
1.72 |
150 |
|
- |
- |
- |
- |
OFF |
OFF |
OFF |
60FPS |
int. |
| Viofo A119 V3 |
44.2 |
1.84 |
140 |
|
- |
- |
- |
- |
OFF |
ON |
OFF |
OFF |
int. |
| Viofo A119 V3 |
59.6 |
2.5 |
104 |
- |
- |
|
- |
- |
OFF |
OFF |
OFF |
OFF |
int. |
| Viofo A119 V3 |
47.7 |
1.98 |
130 |
- |
- |
- |
|
- |
OFF |
OFF |
OFF |
OFF |
int. |
| Viofo A119 V2 |
34.4 |
1.43 |
180 |
- |
- |
- |
- |
- |
OFF |
OFF |
OFF |
OFF |
int. |
| Viofo A119 V2 |
46.6 |
1.94 |
133 |
- |
- |
|
- |
- |
OFF |
OFF |
OFF |
OFF |
int. |
| Viofo A119S |
41.9 |
1.74 |
148 |
- |
- |
- |
- |
- |
OFF |
ON |
OFF |
OFF |
int. |
| Viofo A119S |
49.6 |
2.06 |
125 |
- |
- |
|
- |
- |
OFF |
OFF |
ON |
OFF |
int. |
| Viofo A119S |
53.9 |
2.24 |
115 |
- |
- |
|
- |
- |
OFF |
OFF |
OFF |
OFF |
int. |
| Nextbase 512G |
31 |
1.29 |
201 |
- |
- |
- |
- |
- |
OFF |
OFF |
OFF |
OFF |
int. |
| Nextbase 422GW |
34.4 |
1.43 |
180 |
- |
- |
- |
- |
- |
OFF |
OFF |
OFF |
OFF |
int. |
| 4G mini WiFi Router(Alacatel) |
103.33 |
4.3 |
60 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
int. |
|
|

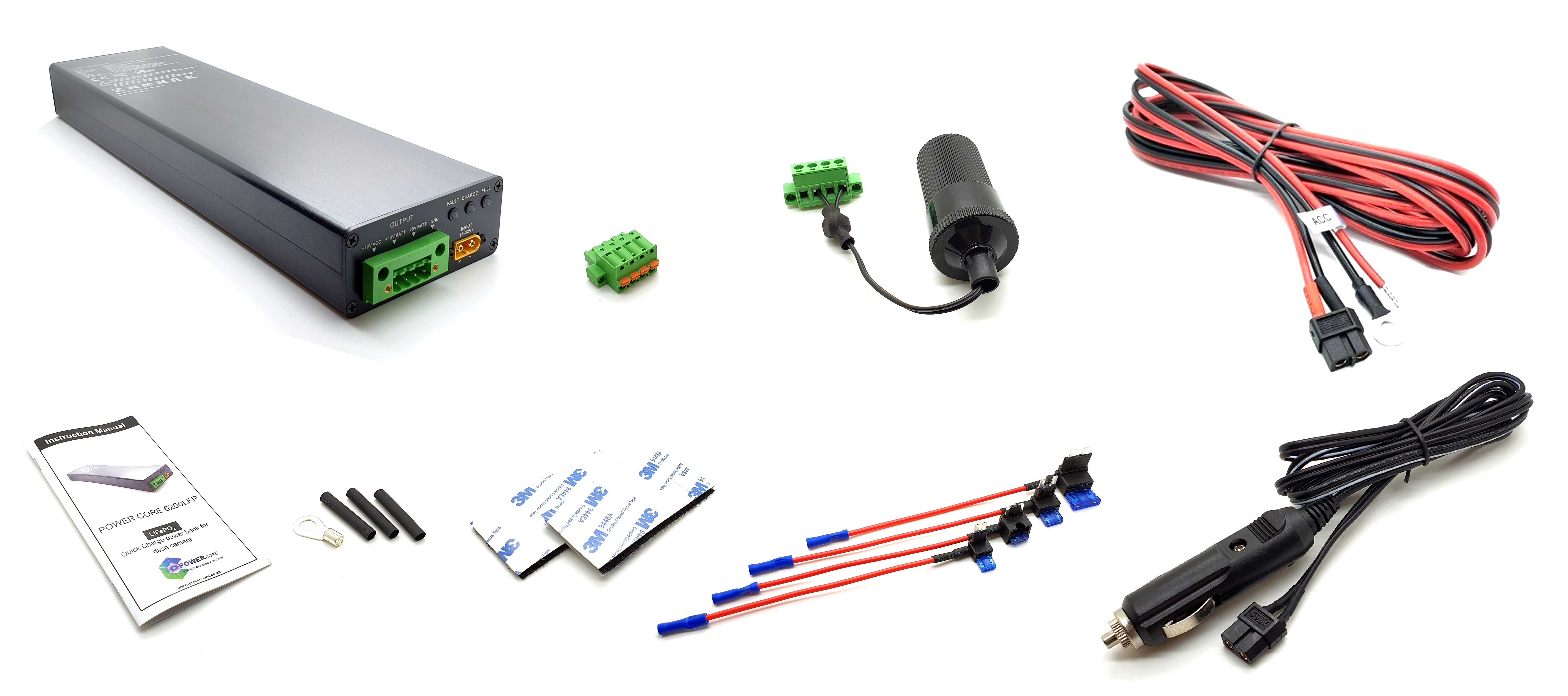

Box Contents:
|
|
- Power-Core 6200LFP-PLUS Dash Cam Power Bank
- Push-Button Connection Terminal
- Car Cigar Female Socket Adaptor
- Power Bank Hardwire Charging Cable (2m Long)
- Cigarette charger (1.5m Long)
- Instruction Manual (EN) + 2Years Warranty
- O-Type GND terminal + Insulation (⌀ 6.5mm)
- High Bond 3M Adhesive Tape
- 4x Fuse leads + 15A Fuses (4 different types)
|
Product Specification
|
|
|
|
| Model | 6200LFP-PLUS |
| Color | Black (brushed aluminium texture) |
| Housing Material | Full Aluminium body with laser marking engraving |
| Size | 322 (L) x 89 (W) x 38 mm (H) |
| Weight | 1195grams |
| Battery Cell Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Internal Cell Combination | 1 x 4S (4 cells in total) |
| Internal Cell Equalizer | Yes, full High and LOW Active Balance mode |
| Internal Cell Type | Cylindrical with Safety Preasure Valve 2.5mpa |

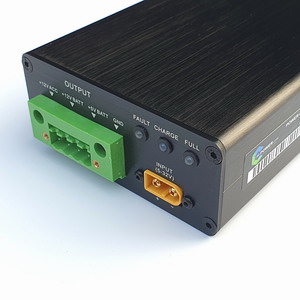

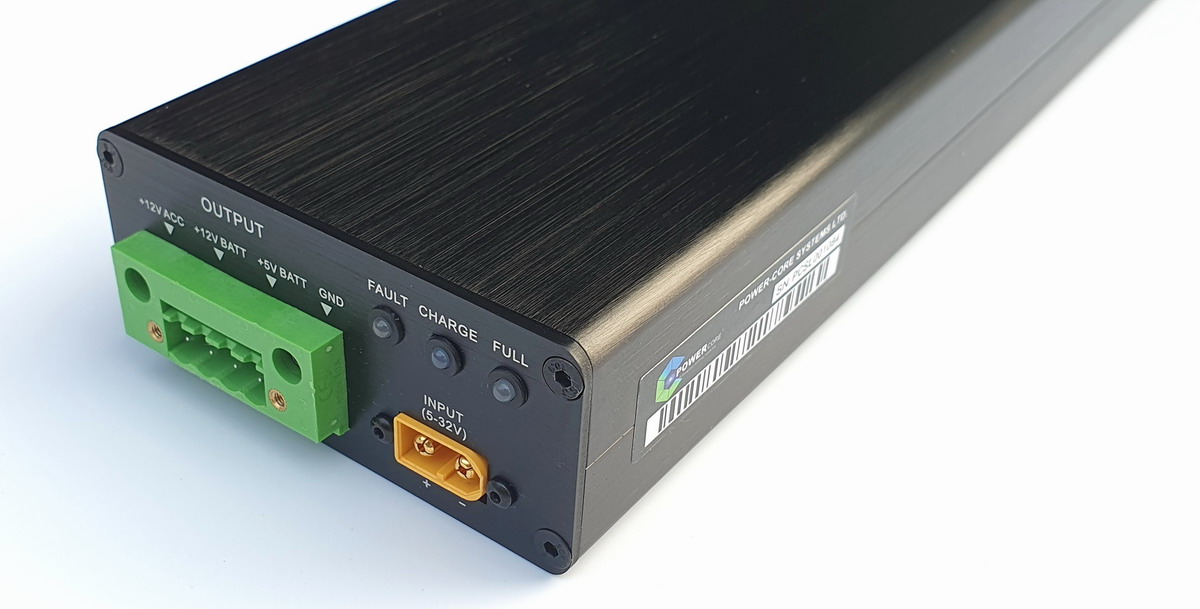

| Input | DC 5V - 32V @ 6.5A (10max) |
| Output | Output1: DC 5V @ 3A
Output2: DC 11V-14.6V @ 3A
Output3: DC 12V ACC @ 2A |
| Conversion efficiency | Input transfer < 92%
Output1: < 98%
Output2: < 99%
Output3: < 100% (Fused ACC Signal) |

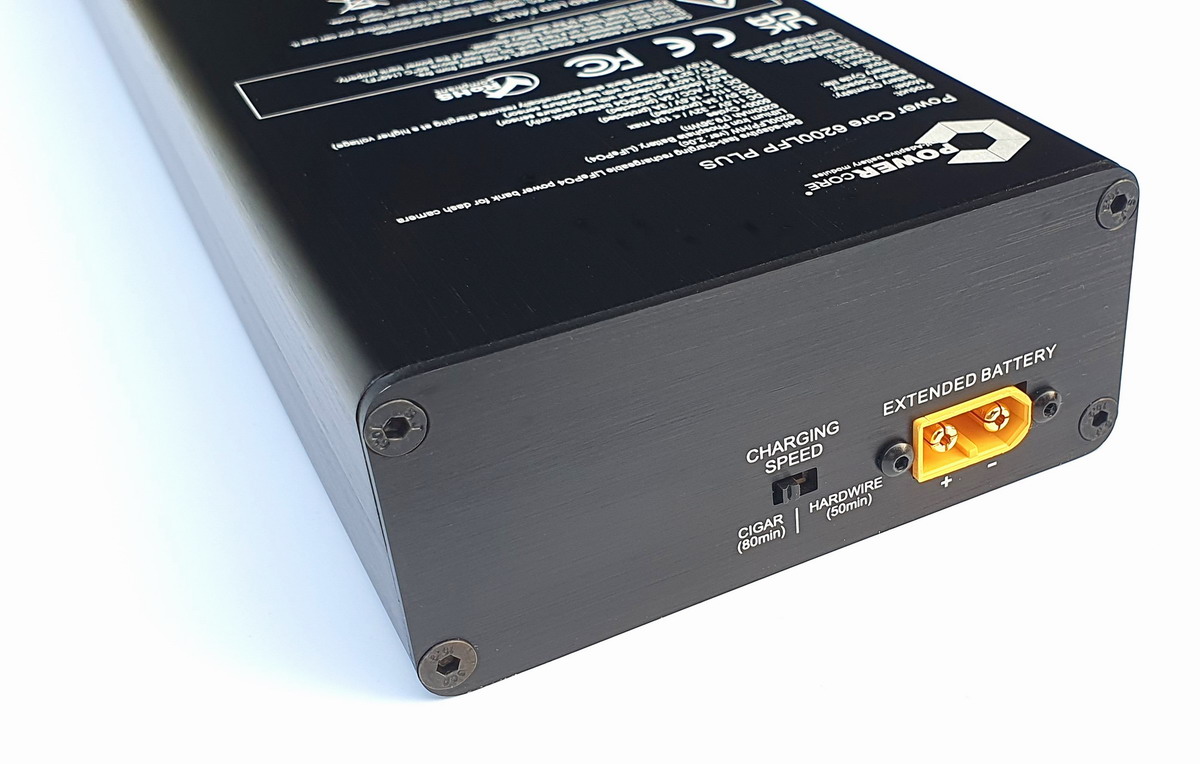

| Charging Time | from 0% to 100% in 50minutes (Hardwire Mode)
from 0% to 100% in 80minutes (Cigar Mode) |
| Running Time | Single Camera: 46 Hours
Dual Camera: 27 Hours
3CH Camera: 12 Hours |
| Cycle Life | 5000+ Cycles (80% DOD) |
| Standby mode | Yes, ultra low power saver mode (<3mA)
with total power off feature (0mA) |
| Connection type | Car Cigar Lighter or Direct Hardwire |
| Charging temperature | 0°C - 60°C |
| Discharging temperature | -30°C - 70°C |
| Low-Temp Protection | Yes, 0°C or less |
| Hi-Temp Protection | Yes, 65°C or more |
| Capacity | 12.8V - 6200mAh / 79.36Wh |

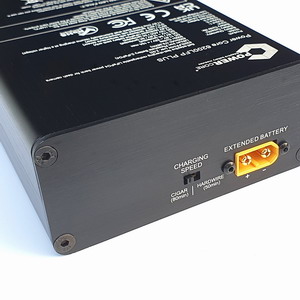

| External Expansion port | Yes, 14.6V LiFePO4 Extended battery pack only |
| Protection type |
Input Cut-Off Low-Voltage: Yes, 12V (RED LIGHT & no charging)
LOW Temperature Cut-Off limit: 0°C (RED LIGHT & no charging)
Hi Temperature Cut-Off limit: 60°C (RED LIGHT & no charging)
Short-Circuit Protection: Yes
Reverse polarity protection: Yes
Soft Start: Yes
Delay Timer: Yes 20sec
Over Discharge protection: Yes, 2.65V/Cell (~10.6V)
Extended Battery Pack Over Current protection: 5A+
Interference free design
Internal PCB Coated by moisture protective compound
|
| Country of origin | Made in Germany |
| Certification | EN 62133-2, UN38.3, UN3481, FCC, CE, UK-CA, MSDS, ROHS. |
| Warranty Period | 2years |
|
|
|
| |
| |
|
